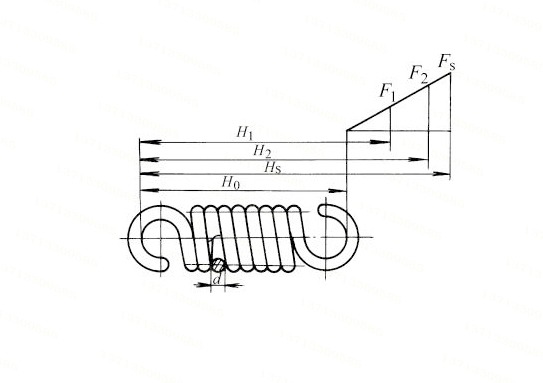

標準圓柱螺旋拉伸彈簧的尺寸及參數 (摘自GB/T 2088—1997)
簧絲直徑 d/mm | 彈簧中徑 D/mm | 初拉力 F0/N | 試驗載荷 Fs/N | 有效圈數n | 試驗載荷下的變 | 彈簧剛度 k/N·mm－1 |
0.5 | 3 | 1.61 | 14.4 | 8～45 | 0.629n | 22.8/n |
3.5 | 1.18 | 12.3 | 0.857n | 14.4/n | ||
4 | 0.90 | 10.8 | 1.117n | 9.65/n | ||
5 | 0.578 | 8.64 | 1.75n | 4.93/n | ||
6 | 0.401 | 7.20 | 2.52n | 2.85/n | ||
0.6 | 3 | 3.33 | 23.9 | 8～45 | 0.504n | 47.4/n |
3.5 | 2.44 | 20.4 | 0.685n | 29.8/n | ||
4 | 1.87 | 17.9 | 0.894n | 20.0/n | ||
5 | 1.20 | 14.3 | 1.40n | 10.2/n | ||
6 | 0.832 | 11.9 | 2.01n | 5.92/n | ||
7 | 0.611 | 10.2 | 2.74n | 3.73/n | ||
0.8 | 4 | 5.92 | 40.4 | 8～45 | 0.639n | 63.2/n |
5 | 3.80 | 32.3 | 8～45 | 1.00n | 32.4/n | |
6 | 2.63 | 26.9 | 8～18 | 1.44n | 18.7/n | |
8 | 1.48 | 20.2 | 10～45 | 2.74n | 7.90/n | |
9 | 1.17 | 18.0 | 8～45 | 2.74n | 5.55/n | |
1 | 5 | 9.24 | 61.5 | 8～45 | 0.779n | 79.0/n |
6 | 6.42 | 51.3 | 1.12n | 45.7/n | ||
7 | 4.72 | 44.0 | 1.53n | 28.8/n | ||
8 | 3.61 | 38.5 | 2.00n | 19.3/n | ||
9 | 2.85 | 34.2 | 2.52n | 13.5/n | ||
10 | 2.32 | 30.8 | 3.12n | 9.90/n | ||
12 | 1.61 | 25.6 | 4.48n | 5.71/n | ||
1.2 | 6 | 13.3 | 86.4 | 8～45 | 0.911n | 94.8/n |
7 | 9.78 | 74.0 | 1.24n | 59.7/n | ||
8 | 7.49 | 64.8 | 1.62n | 40.0/n | ||
9 | 5.92 | 57.6 | 2.05n | 28.1/n | ||
10 | 4.80 | 51.8 | 2.53n | 20.5/n | ||
12 | 3.33 | 43.2 | 3.65n | 11.8/n | ||
14 | 2.44 | 37.0 | 4.96n | 7.45/n | ||
1.6 | 8 | 23.6 | 145 | 8～45 | 1.15n | 126/n |
9 | 18.7 | 129 | 1.46n | 88.8/n | ||
10 | 15.1 | 116 | 1.80n | 64.8/n | ||
12 | 10.5 | 97.0 | 2.59n | 37.5/n | ||
14 | 7.72 | 83.1 | 3.53n | 23.6/n | ||
16 | 5.92 | 72.7 | 4.60n | 15.8/n | ||
18 | 4.68 | 64.7 | 5.81n | 11.1/n | ||
2 | 10 | 37.0 | 215 | 8～45 | 1.36n | 158/n |
12 | 25.7 | 179 | 1.95n | 91.5/n | ||
14 | 18.8 | 153 | 1.67n | 57.6/n | ||
16 | 14.4 | 134 | 3.48n | 38.6/n | ||
18 | 11.4 | 119 | 4.40n | 27.0/n | ||
20 | 9.24 | 107 | 5.44n | 19.7/n | ||
22 | 7.64 | 97.6 | 6.58n | 14.8/n | ||
2.5 | 12 | 62.7 | 339 | 8～45 | 1.52n | 223/n |
14 | 46.1 | 291 | 2.07n | 140/n | ||
16 | 35.3 | 255 | 2.70n | 94.2/n | ||
18 | 27.9 | 226 | 3.42n | 66.2/n | ||
20 | 22.6 | 204 | 4.22n | 48.2/n | ||
22 | 18.6 | 185 | 5.10n | 36.2/n | ||
25 | 14.4 | 163 | 6.59n | 24.6/n | ||
3 | 14 | 95.5 | 475 | 8～45 | 1.63n | 291/n |
16 | 73.2 | 416 | 2.13n | 195/n | ||
18 | 57.8 | 370 | 2.69n | 137/n | ||
20 | 46.8 | 333 | 3.33n | 100/n | ||
22 | 38.7 | 303 | 4.02n | 75.1/n | ||
25 | 29.9 | 266 | 5.20n | 51.2/n | ||
28 | 23.8 | 238 | 6.52n | 36.5/n | ||
3.5 | 18 | 107 | 587 | 8～45 | 2.31n | 254/n |
20 | 86.8 | 528 | 2.85n | 186/n | ||
22 | 71.7 | 480 | 3.45n | 139/n | ||
25 | 55.5 | 423 | 4.46n | 94.8/n | ||
28 | 44.2 | 377 | 5.59n | 67.5/n | ||
32 | 33.8 | 330 | 7.29n | 45.2/n | ||
35 | 28.4 | 302 | 8.74n | 34.6/n | ||
40 | 21.7 | 264 | 11.4n | 23.1/n | ||
4 | 20 | 148 | 764 | 8～45 | 2.41n | 316/n |
22 | 123 | 694 | 2.92n | 238/n | ||
25 | 94.7 | 611 | 3.78n | 161/n | ||
28 | 75.4 | 545 | 4.74n | 115/n | ||
32 | 57.8 | 477 | 6.18n | 77.1/n | ||
35 | 48.3 | 436 | 7.40n | 59.0/n | ||
40 | 37.0 | 382 | 9.66n | 39.5/n | ||
45 | 29.2 | 339 | 12.2n | 27.7/n | ||
4.5 | 22 | 196 | 988 | 8～45 | 2.60n | 380/n |
25 | 152 | 870 | 3.36n | 259/n | ||
28 | 121 | 777 | 4.21n | 185/n | ||
32 | 92.6 | 680 | 5.50n | 124/n | ||
35 | 77.4 | 621 | 6.58n | 94.4/n | ||
40 | 62.8 | 544 | 8.59n | 63.3/n | ||
45 | 46.8 | 483 | 10.8n | 44.4/n | ||
50 | 37.9 | 435 | 13.4n | 32.4/n | ||
55 | 31.3 | 395 | 16.2n | 24.4/n | ||
5 | 25 | 232 | 1 154 | 8～45 | 2.92n | 395/n |
28 | 184 | 1 030 | 3.66n | 281/n | ||
30 | 161 | 962 | 4.20n | 228/n | ||
32 | 141 | 902 | 4.79n | 188/n | ||
35 | 118 | 824 | 5.72n | 143/n | ||
40 | 90.3 | 721 | 7.48n | 96.5/n | ||
45 | 71.3 | 641 | 9.47n | 67.7/n | ||
50 | 57.8 | 577 | 11.7n | 49.3/n | ||
55 | 47.8 | 525 | 14.2n | 37.1/n | ||
60 | 40.1 | 481 | 16.8n | 28.5/n | ||
6 | 30 | 333 | 1 605 | 8～45 | 3.39n | 474/n |
32 | 292 | 1 505 | 3.85n | 390/n | ||
35 | 244 | 1 376 | 4.60n | 298/n | ||
40 | 187 | 1 204 | 6.02n | 200/n | ||
45 | 148 | 1 070 | 7.62n | 140/n | ||
50 | 120 | 963 | 9.40n | 102/n | ||
55 | 99.1 | 876 | 11.4n | 76.9/n | ||
60 | 83.2 | 803 | 13.5n | 59.2/n | ||
65 | 71.0 | 741 | 15.9n | 46.6/n | ||
70 | 61.1 | 688 | 18.4n | 37.3/n | ||
8 | 40 | 592 | 2 753 | 8～45 | 4.35n | 632/n |
45 | 468 | 2 447 | 5.52n | 444/n | ||
50 | 379 | 2 203 | 6.81n | 323/n | ||
55 | 313 | 2 002 | 6.24n | 243/n | ||
60 | 263 | 1 835 | 9.80n | 187/n | ||
65 | 224 | 1 694 | 11.5n | 147/n | ||
70 | 193 | 1 573 | 13.3n | 118/n | ||
80 | 148 | 1 377 | 17.5n | 79.0/n |
